Small Rotating Motor

FOB Reference Price:Get Latest Price
500 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Fengtech
Model Number:
50KTYZ
Type:
Reversible motor
Frequency:
50 / 60 Hz
Output Power:
1.2W
Protect Feature:
Impedance, Impedance
Phase:
Single-phase, Single-phase
Certification:
CCC, CE, ROHS, UL
AC Voltage:
24 / 110 / 220 V
Place of Origin:
Zhejiang, China (Mainland)
Usage:
Damper
Function:
Driving
Structure:
Synchronous Motor
Speed:
Low Speed
Shape:
Tubular
Output Shaft:
Customized
Rotate direction:
CW / CCW / Bi-directional
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
100pcs/CTN
Port
Ningbo
Lead Time :
25 days

Specifications

Reversible Motor
Small gear motor
High torque Efficiency
Low noise Light weight

FEATURES:

Gear box inside designed
Excellent torque characterisitcs
Instantaneous start/stop
Reliable starting and directional stability
Virtually silent running for noise sensitive environments
Speed state invariable not effected by voltage under rated frequency
Winding will not ruin when motor over loading or abrupt stop running

 High quality engineering ensures a quiet and long running life





APPLICATIONS:
              Electric equipment, Damper Control
              Motorized Valve, CATV system, Rotating Display Tray

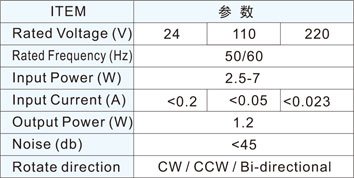

SPECIFICATION:

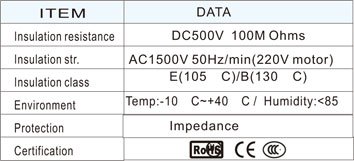

SAFTEY:

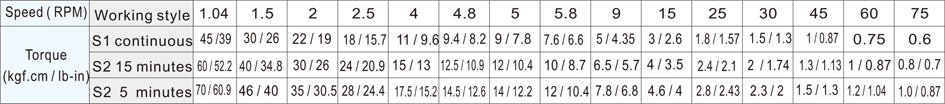

SPEED & TORQUE:

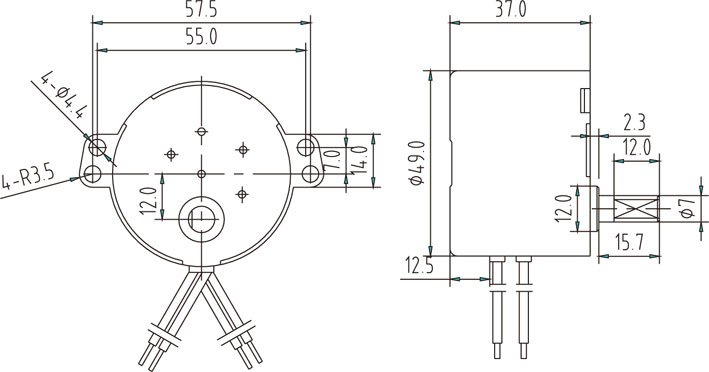

DRAWING

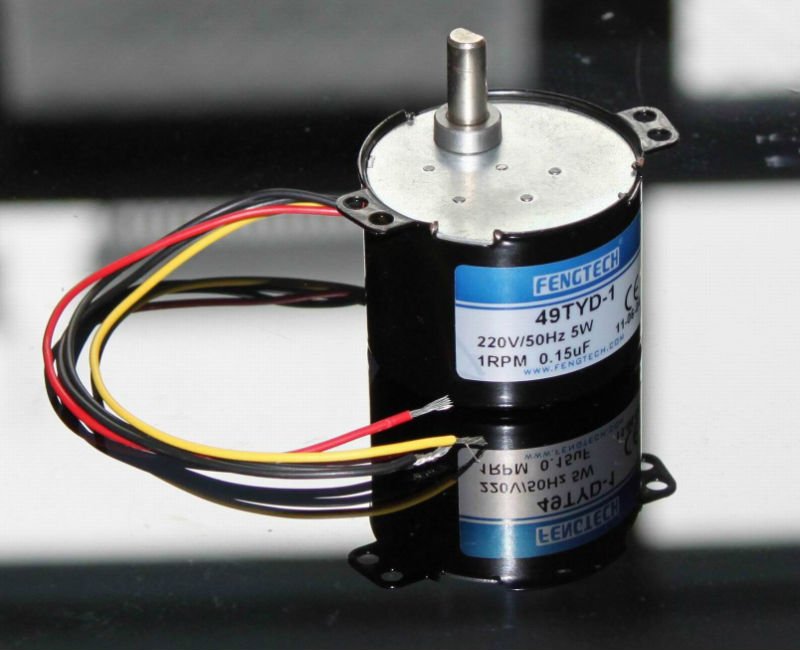

OVERVIEW  of  49Series:




VARIOUS OUTPUT SHAFTS & BODY HOUSING & PLUGS:

Colored Zinc body case, Square nickel plating shaft




Varnish body case, Customized shaft sleeve, Machined flat shaft a04.JPG



Silvery body case, surface black coating shaft, Edge milling




Any Requirements




Just Let FENGTECH know

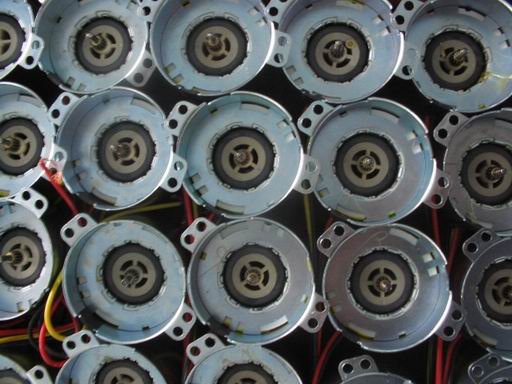

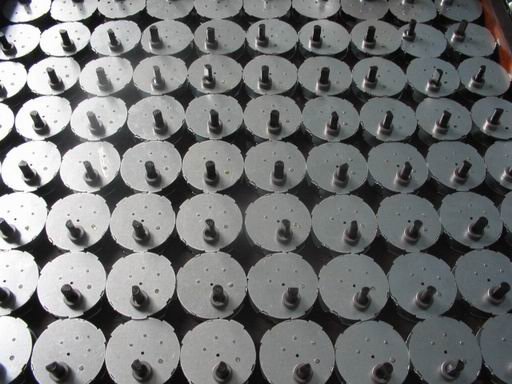

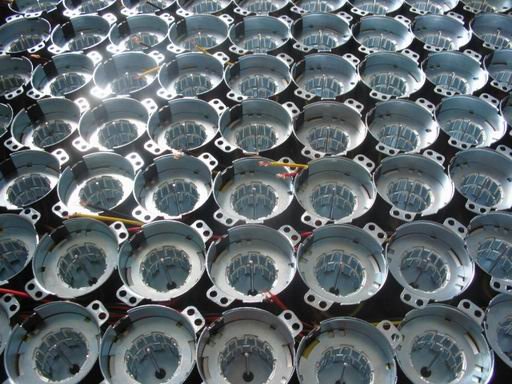

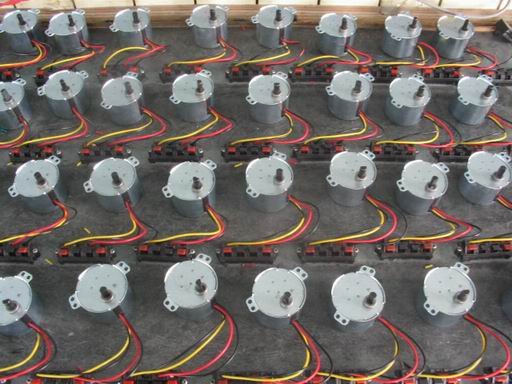

Normalized Process for Installing and Inspecting:

 IMG_1807.JPG IMG_1804.JPG IMG_1799.JPG IMG_1801.JPG
